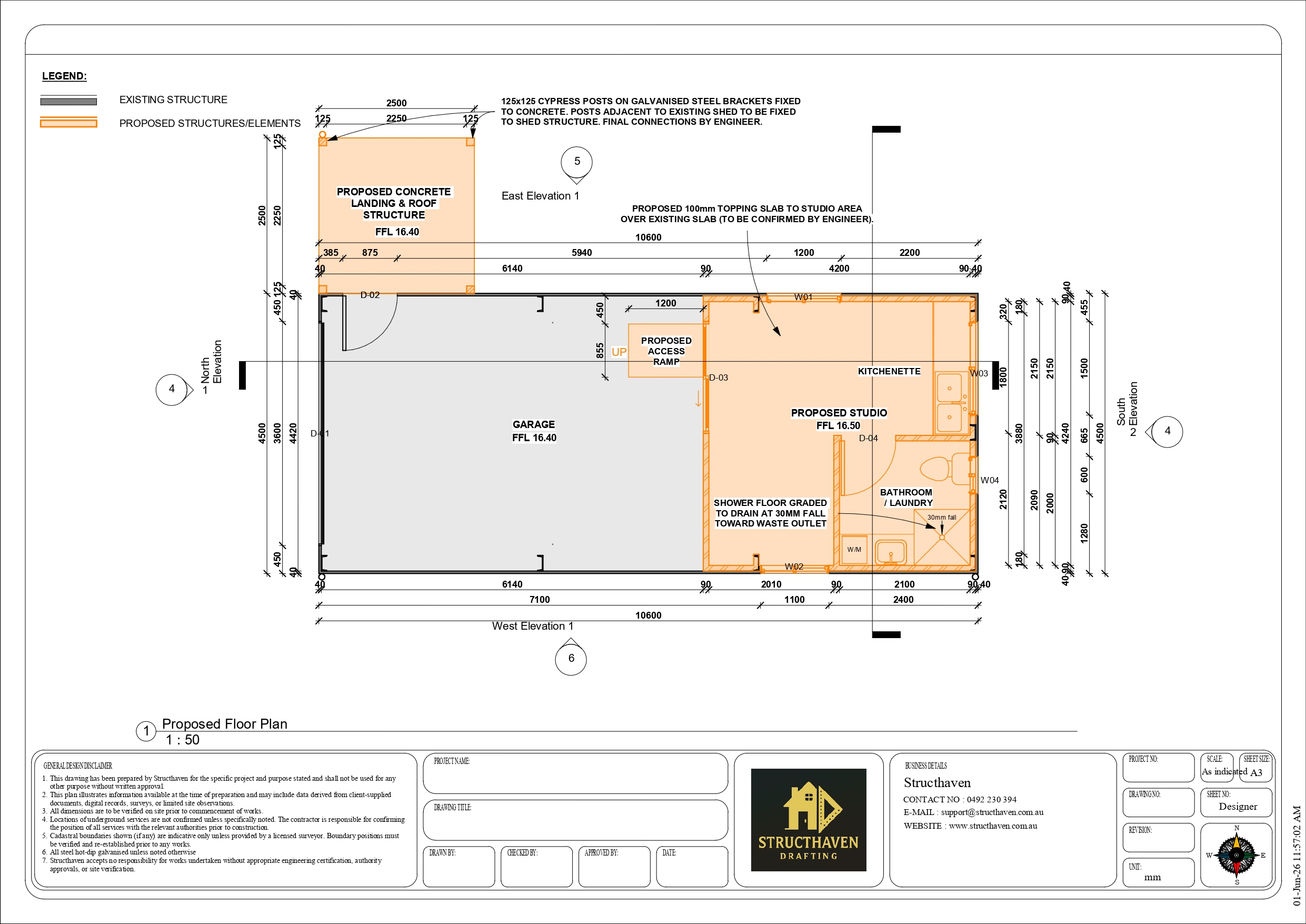

Shed Conversion to Habitable Studio
Mission Beach, QLD
Structhaven was engaged to prepare drafting and documentation for the conversion of an existing shed into a proposed habitable studio located in Mission Beach, Queensland.
The objective of the project was to maximise the functionality of the existing structure by creating a self-contained studio space incorporating a bedroom, kitchenette, bathroom, and accessible internal circulation while maintaining the existing shed footprint.
Working alongside the client throughout the design process, Structhaven developed a coordinated drawing package that balanced accessibility requirements, natural lighting provisions, waterproofing considerations, structural upgrades, and practical construction outcomes.
The design incorporated a proposed internal access ramp, upgraded openings, bathroom facilities, new windows and doors, and supporting structural framing elements, allowing the existing shed to be adapted into a functional living space suitable for future approval and construction.
Several design refinements were undertaken throughout the project to optimise the internal layout, improve usability, and coordinate with anticipated engineering and certification requirements while maintaining the client's overall vision for the development.
The completed documentation package provides a practical framework for the proposed conversion and demonstrates how existing structures can be repurposed into valuable habitable accommodation through thoughtful planning, design coordination, and detailed documentation.
Residential Home Submission
Structhaven produced a submission-ready drawing set for a residential dwelling with two functional sides under one roof.
Work Completed:

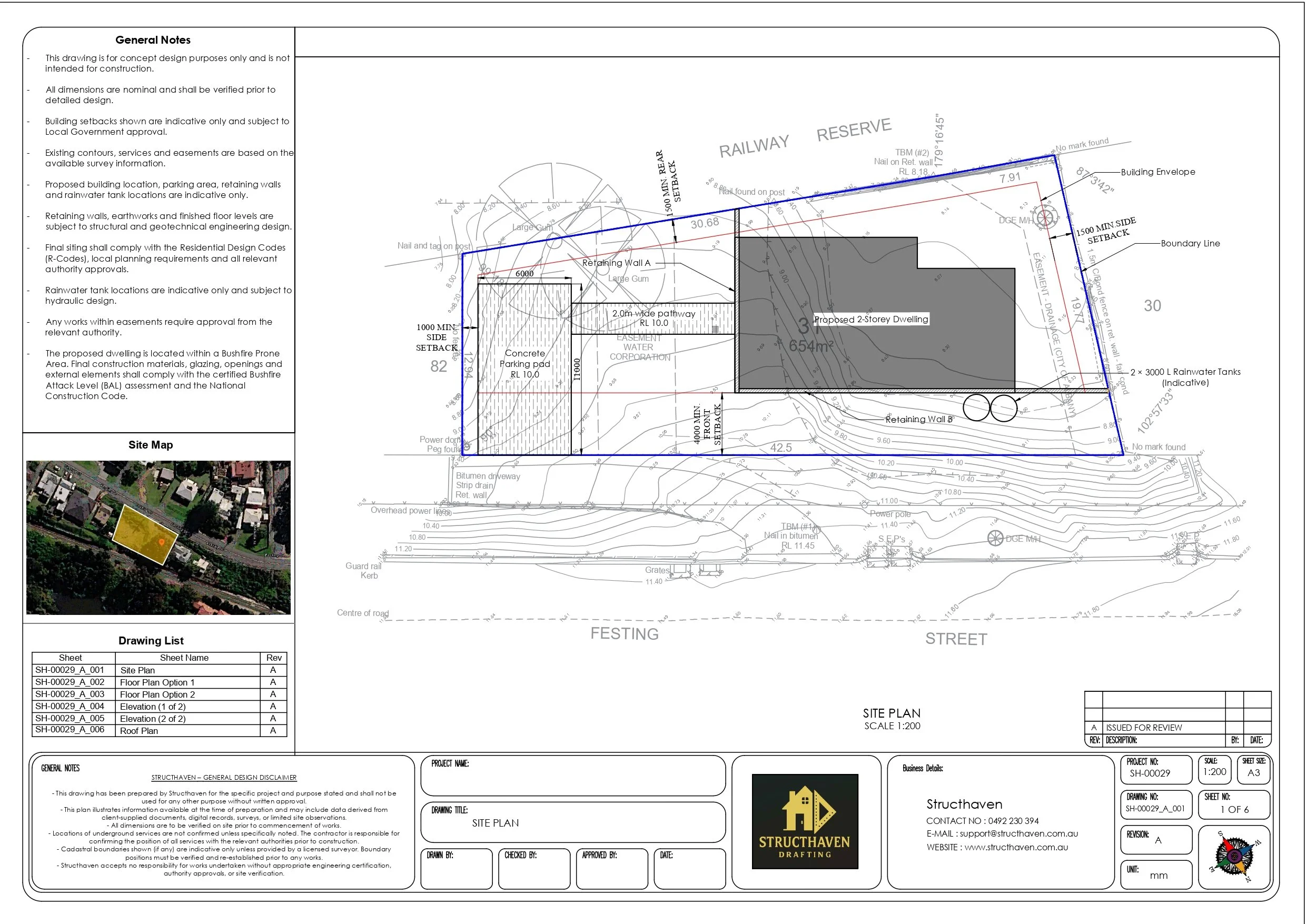

Site Plan showing overall layout and setbacks

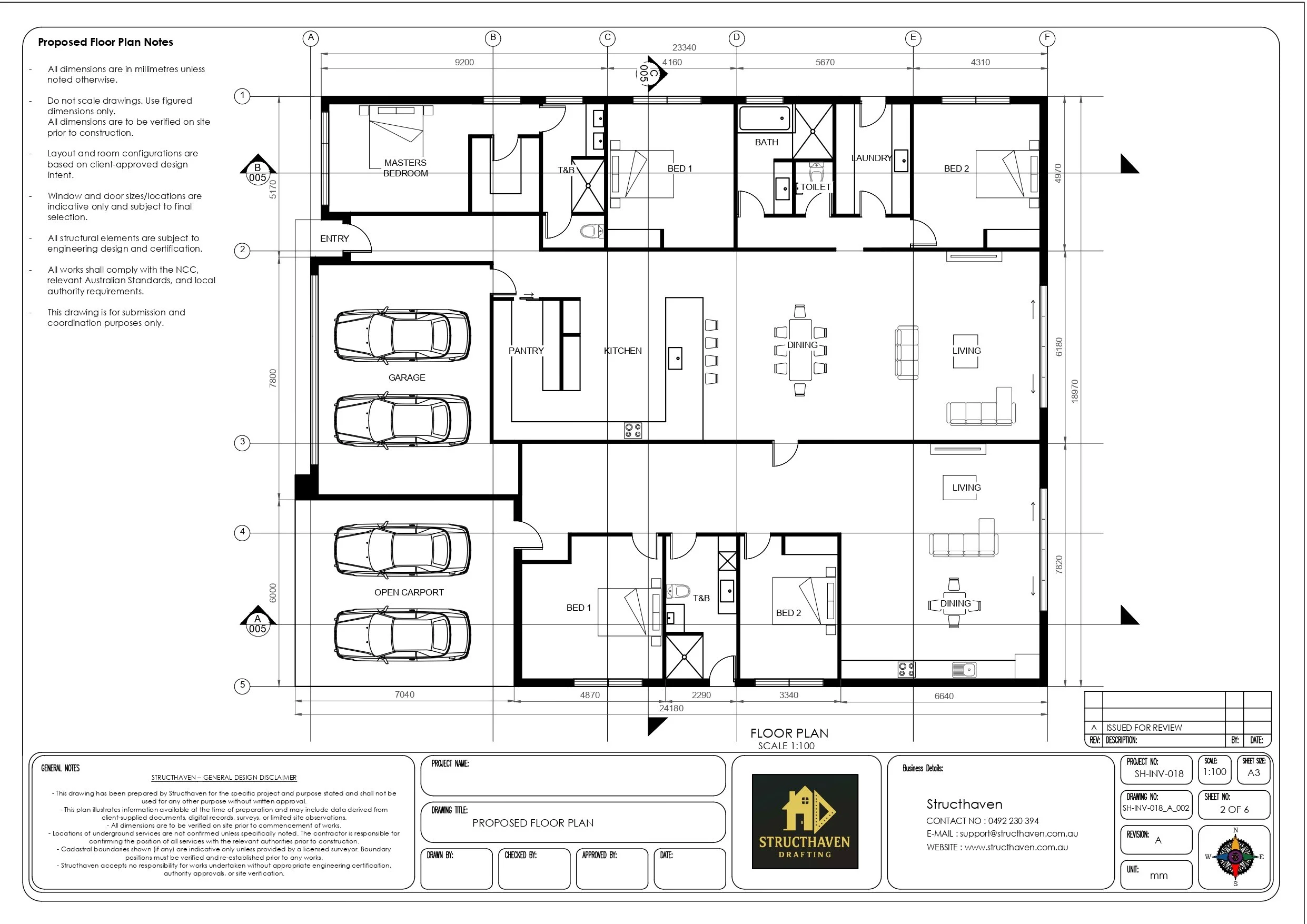

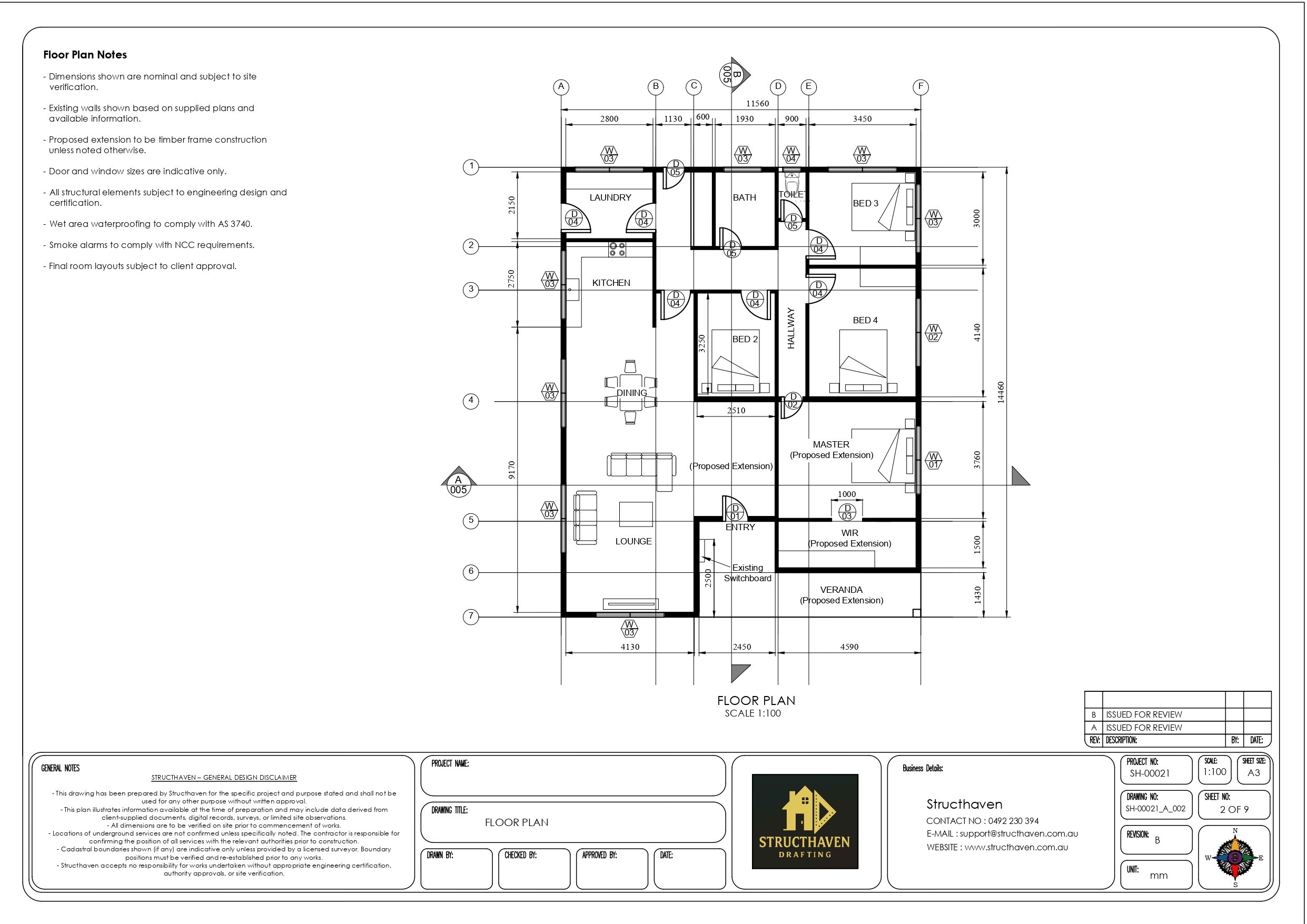

Floor Plan reflecting the full internal layout

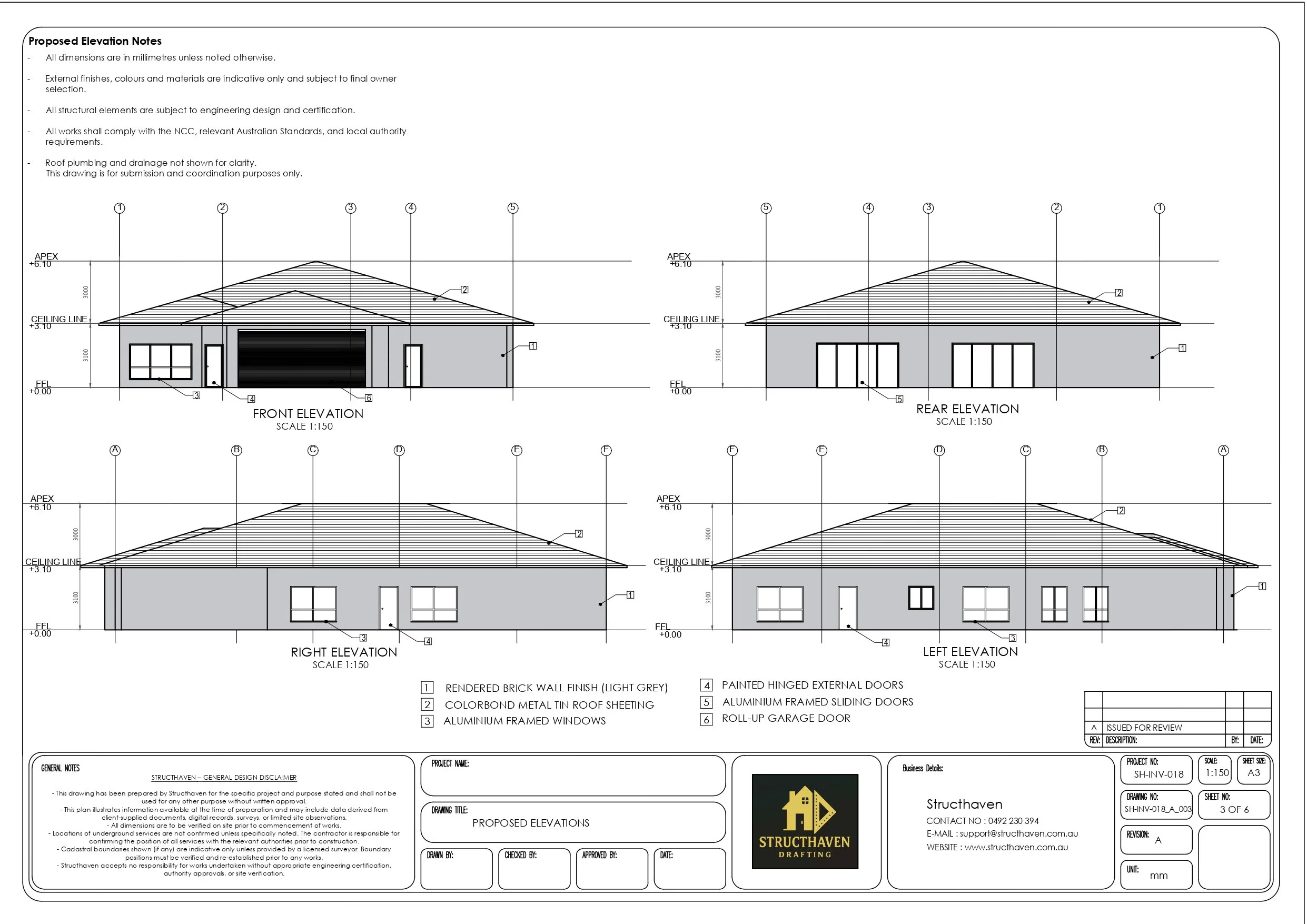

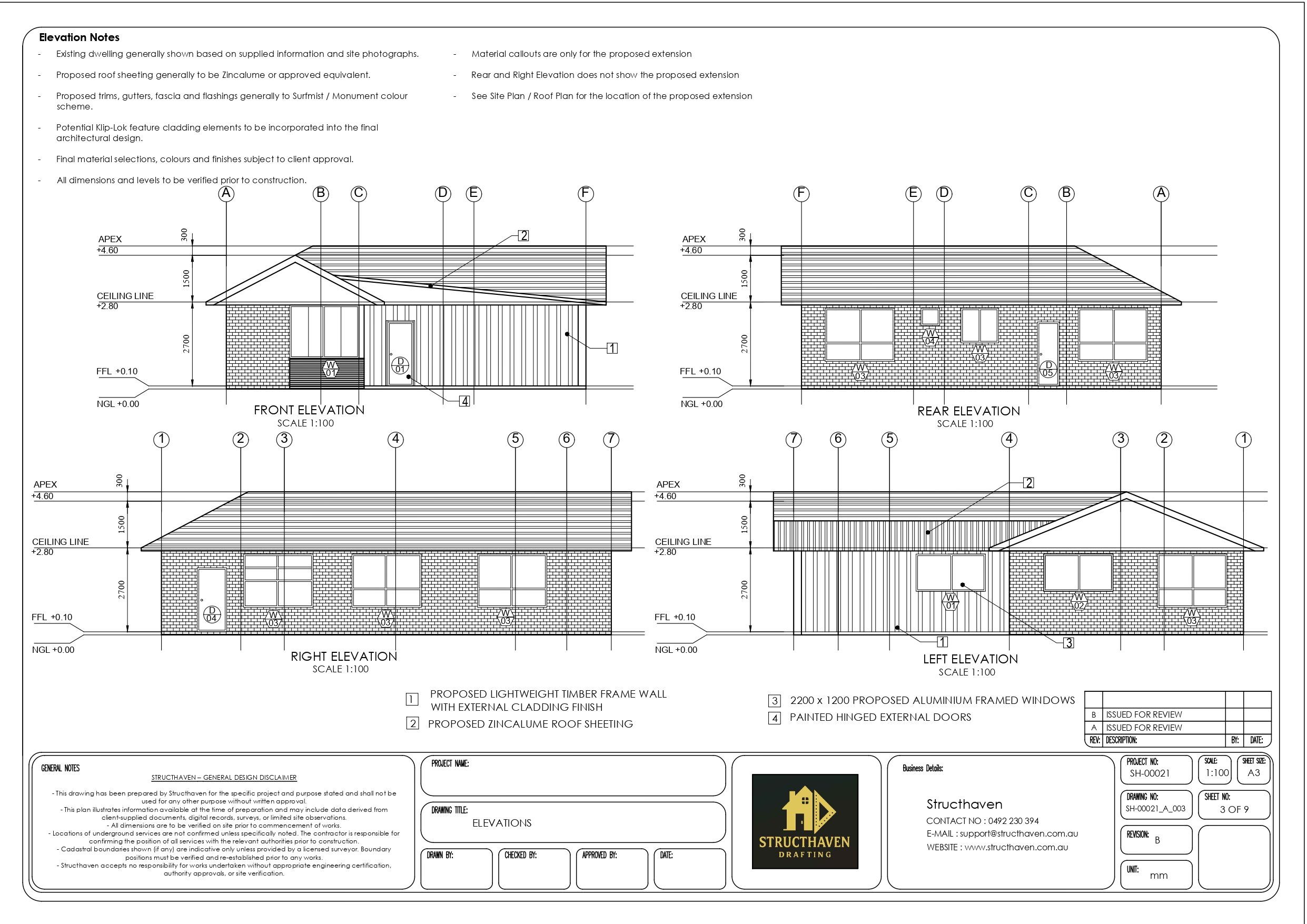

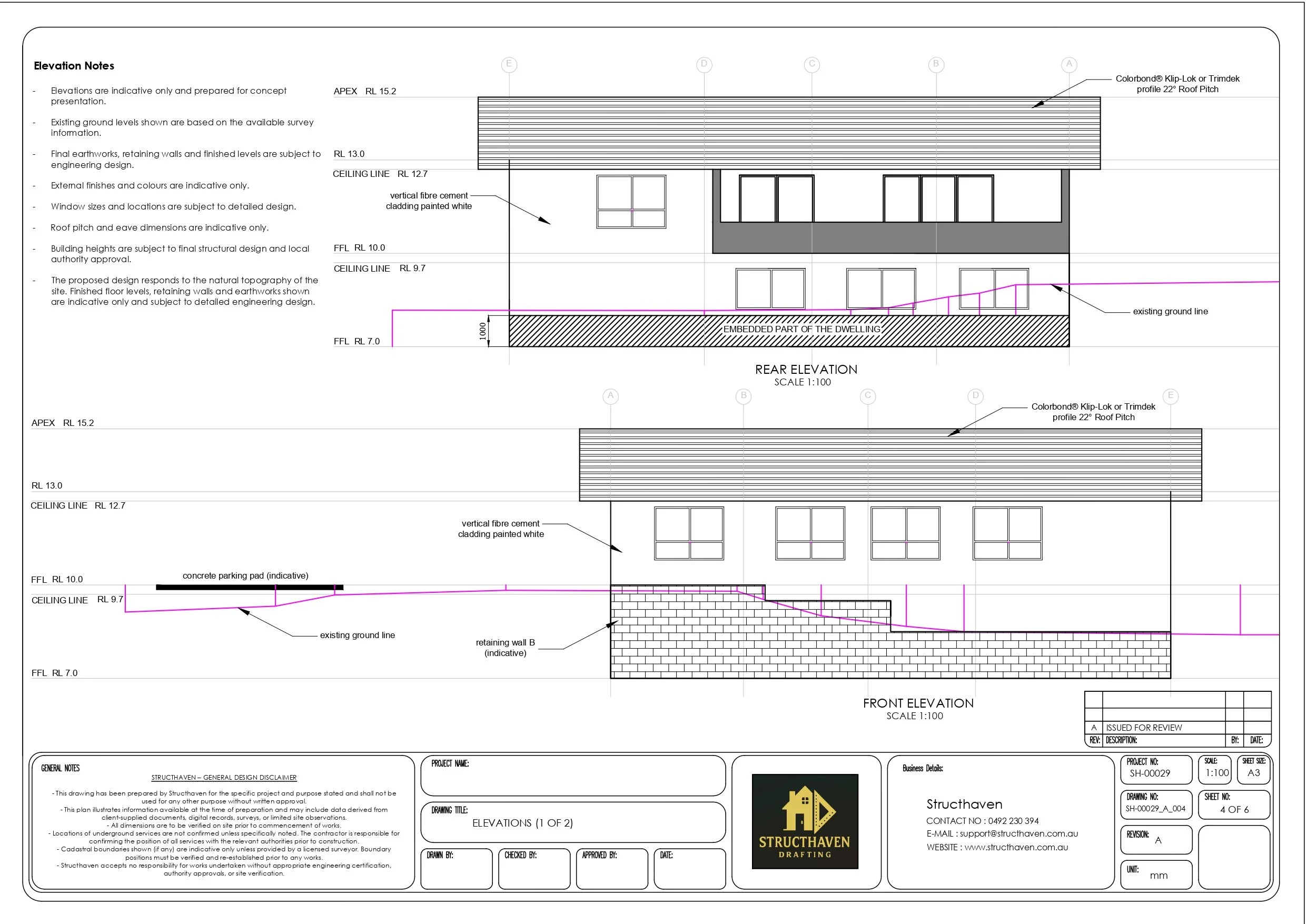

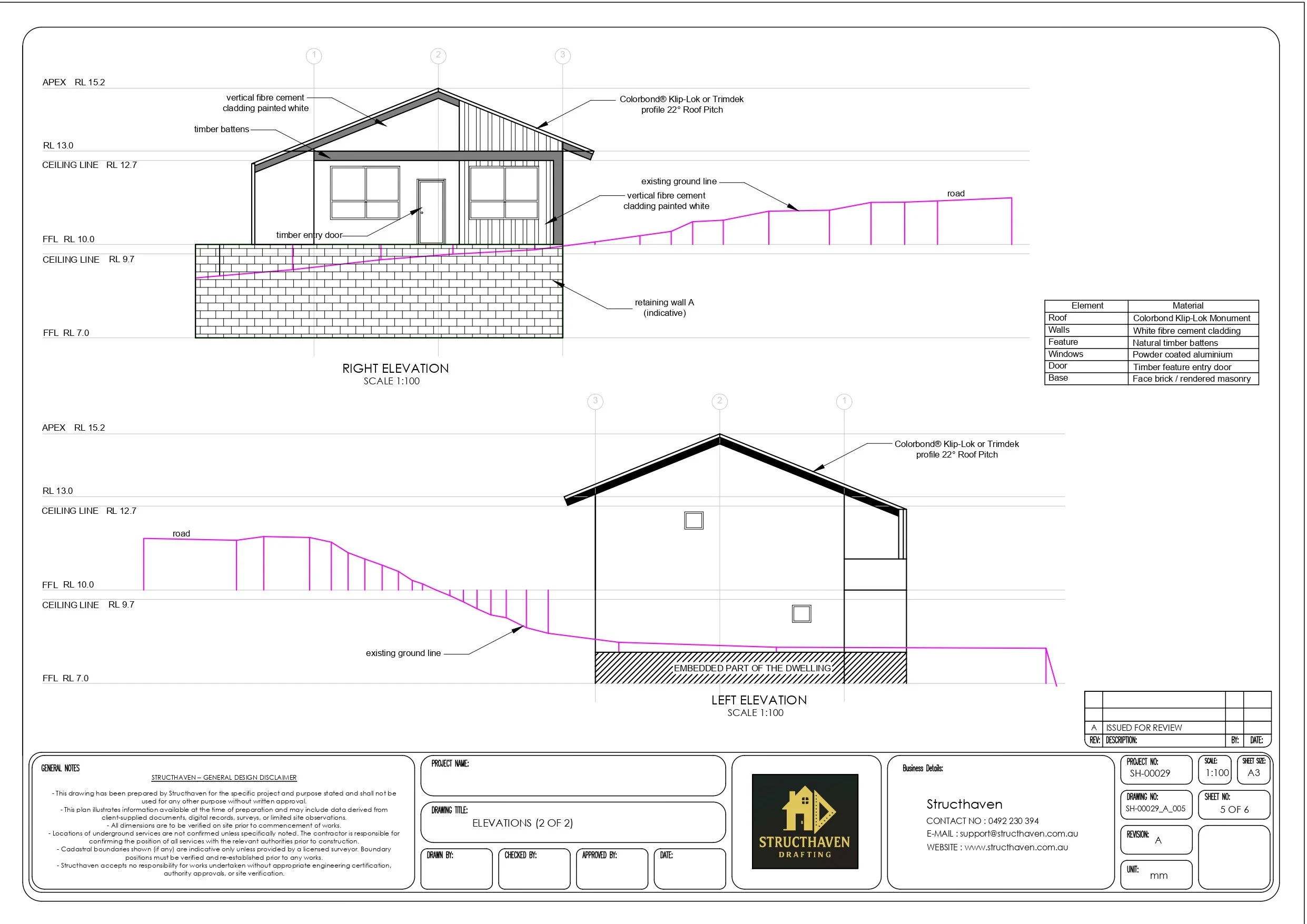

Elevations demonstrating roof form and external finishes

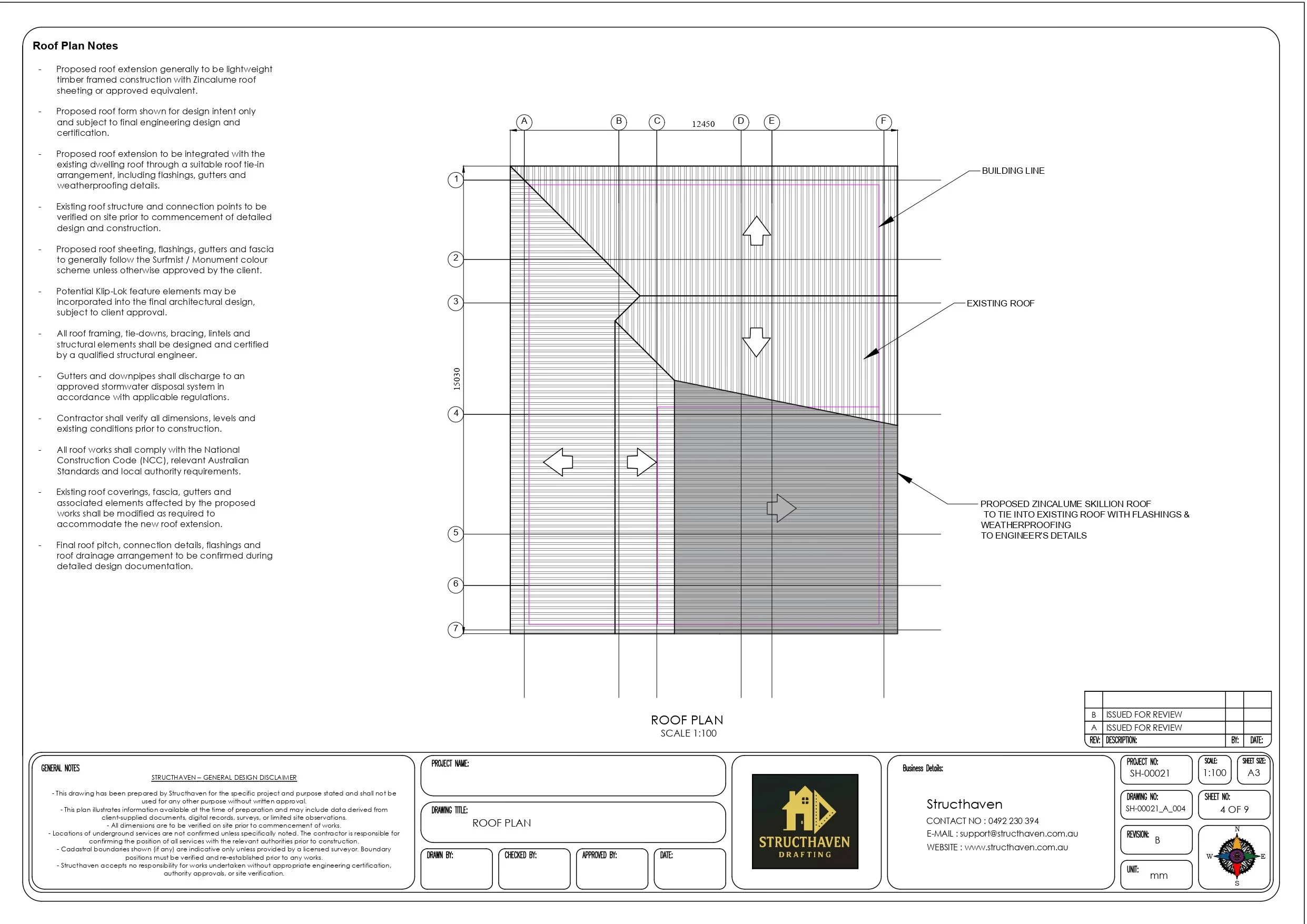

Roof Plan illustrating slopes, ridges, and overhangs

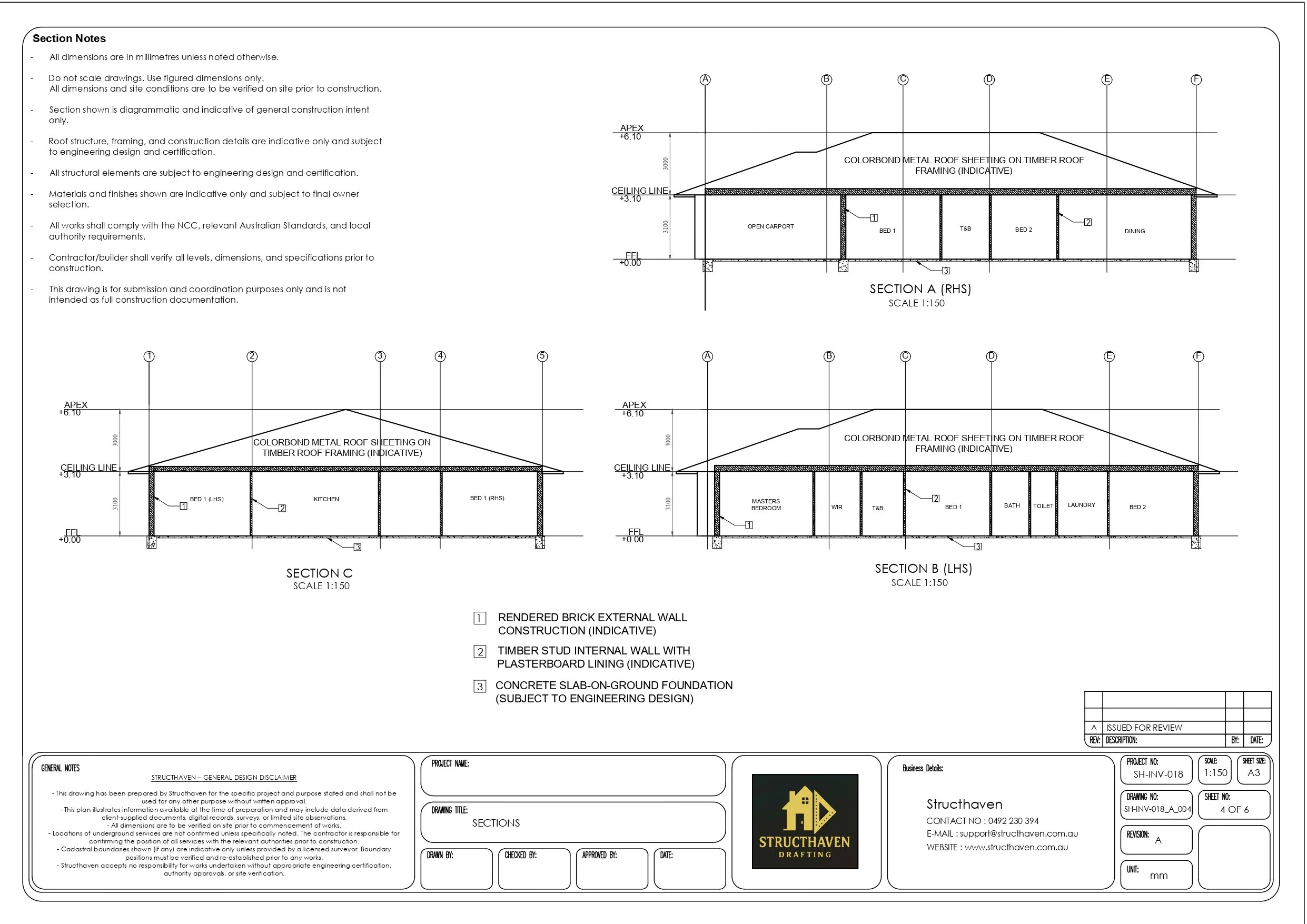

Sections showing internal heights and spatial relationships
General Notes for submission and coordination purposes
The set was prepared to provide clear, buildable, and compliant documentation suitable for council submission.

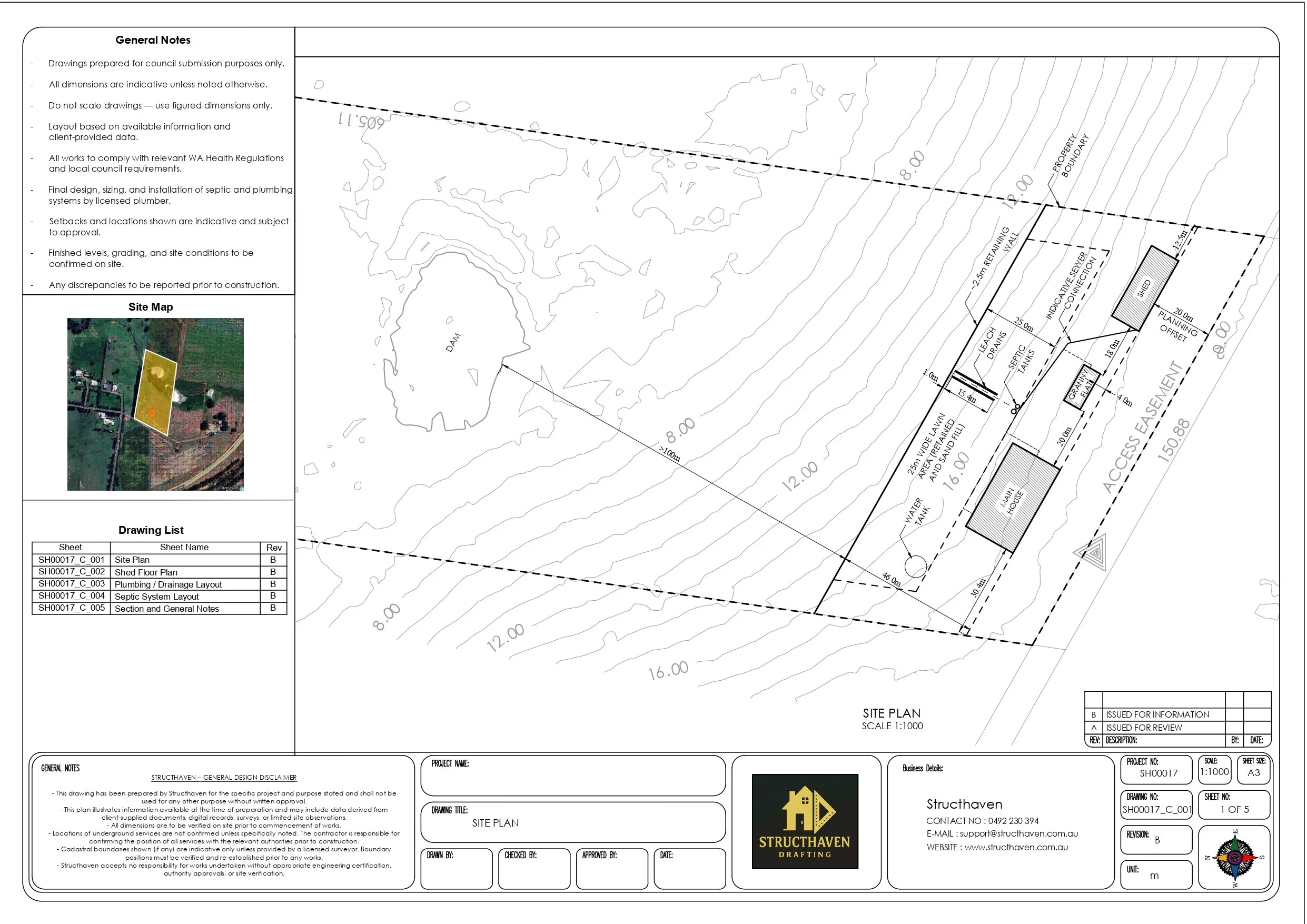

Corrigin, Western Australia
Shed Toilet & Effluent System | Council Submission
Structhaven prepared a council submission drawing set for a proposed shed toilet and effluent system.
Project Highlights:

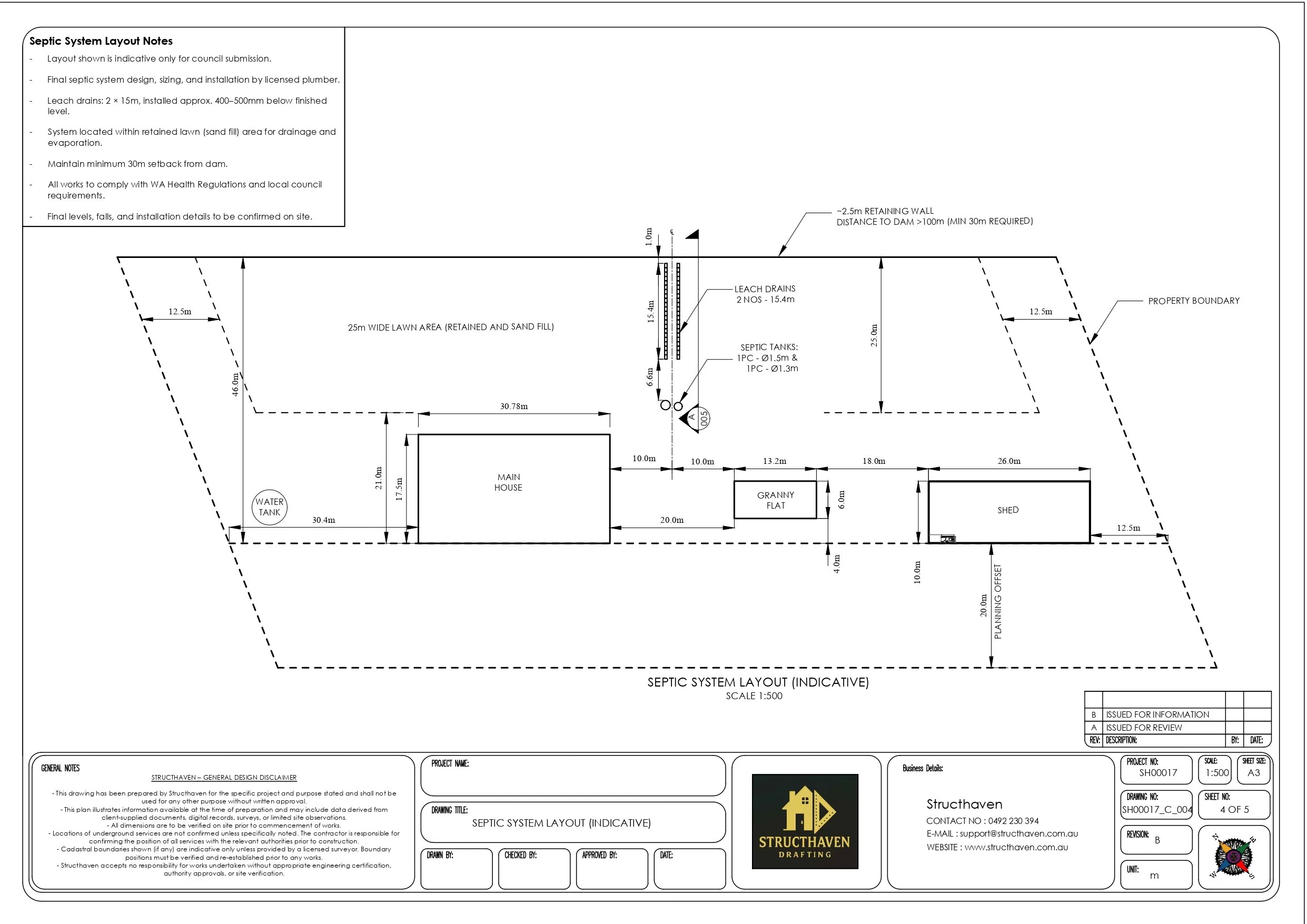

Combined septic system layout with leach drains in a retained and sand-filled lawn area

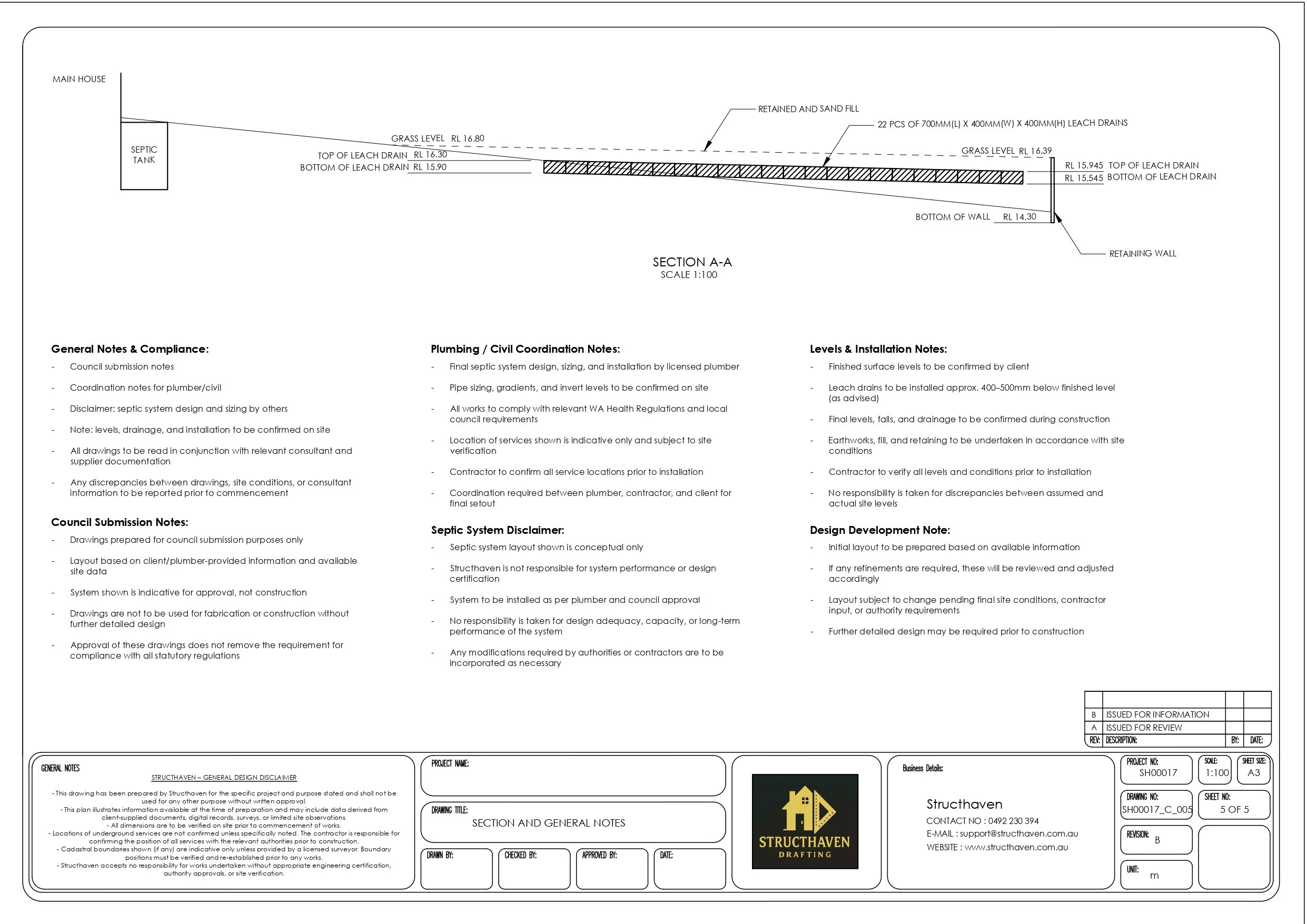

Detailed sections showing levels, retaining walls, and fill volumes

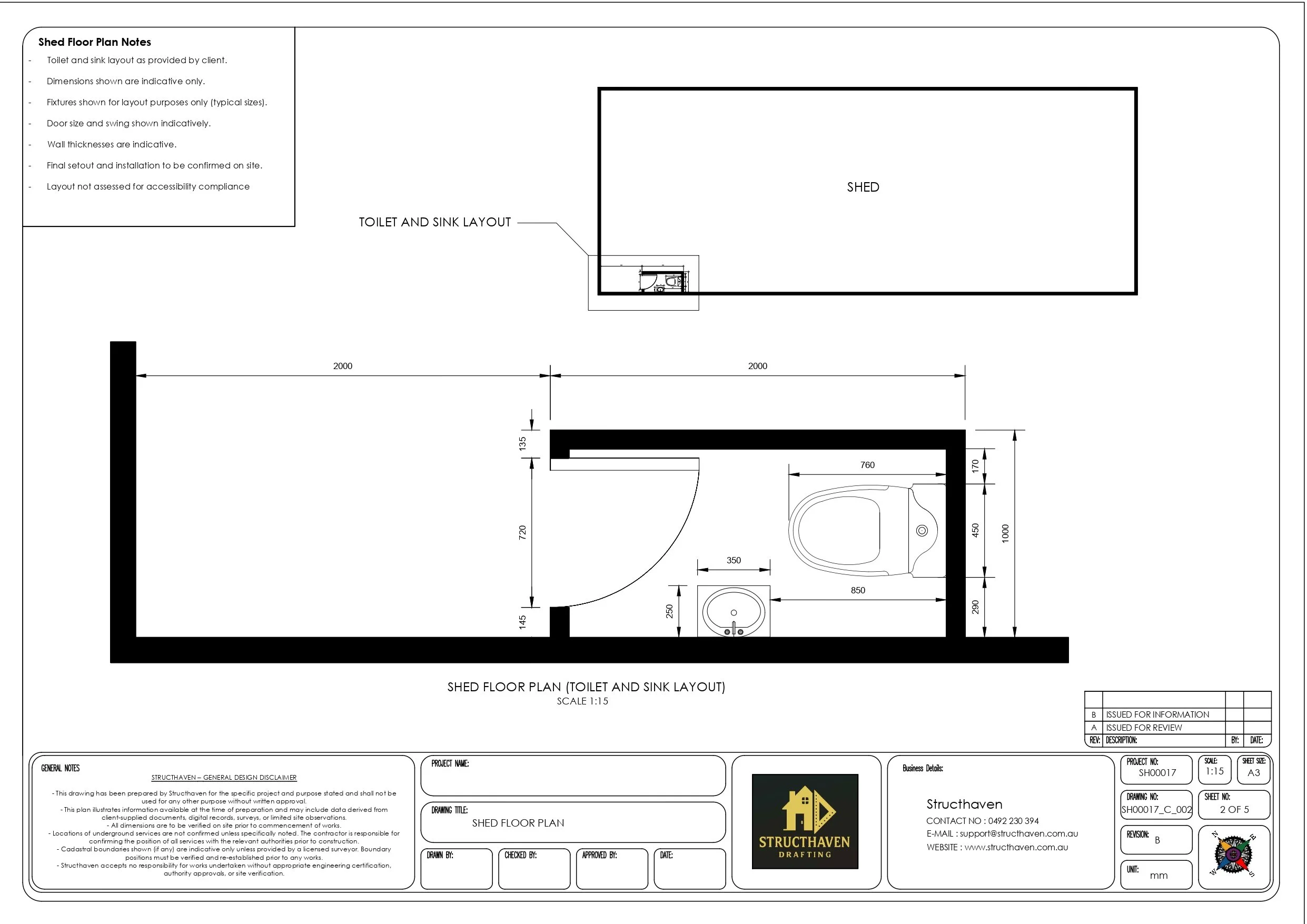

Shed floor plan including toilet and sink layout
Plumbing and drainage schematic for council submission
Clear, compliance-focused documentation ready for approval
This project showcases Structhaven’s ability to deliver practical, accurate, and approval-ready technical drawings for rural infrastructure projects.
Burekup WA
Dual Dwelling Design & Site Planning
Binningup, WA
Structhaven recently completed a dual dwelling design project in Binningup, Western Australia, delivering a practical and buildable solution for a sloping residential site.
This project involved full site planning, drafting, and design documentation for a dual occupancy development, including a 4 bedroom, 2 bathroom main dwelling and a separate secondary dwelling (granny flat).
A key challenge was managing the natural fall of the land. This was resolved through a split-level design approach, with finished floor levels set at FFL 14.2 and FFL 15.5, supported by a retaining wall design strategy to create clean, usable building pads.
Our scope included:
Site layout and development planning
Dual occupancy design and drafting
Retaining wall design coordination
Floor plans and elevations
Building pad and level design
Development Approval (DA) ready drawings
The outcome is a functional, construction-ready design that balances compliance, usability, and cost-efficiency — ensuring the site works in real conditions, not just on paper.
At Structhaven, we specialise in residential drafting, site planning, and development design across Western Australia, delivering fast, clear, and buildable solutions for homeowners, developers, and builders.
📍 Binningup, WA
📐 Dual Dwelling | Site Planning | Retaining Design | Drafting Services
Shipping Container Compound Design
Victoria Industrial Infrastructure Project
Structhaven completed a detailed shipping container compound design for an industrial site in Victoria, delivering a functional, scalable, and compliance-ready solution tailored to remote and high-exposure environments.
This project involved the integration of multiple shipping containers, including two 20ft containers and one 40ft container, arranged around a central usable space to maximise efficiency and accessibility. The design incorporated a structural steel roof system, providing full coverage across the compound while allowing for solar panel integration and long-term durability.
A key focus of the project was environmental resilience and self-sufficiency. The compound includes:
10,000L water storage tanks connected via downpipe systems
Solar panel-ready roofing system with appropriate fall and mounting provisions
Colorbond® cladding and roofing, ensuring durability in exposed conditions
Compliance with BAL 29 fire safety and ember-proofing requirements for bushfire-prone areas
The internal layout was designed around a central deck system, elevated to provide practical access and usability between containers. Structural elements such as pad footings, concrete slabs, and framing systems were coordinated to allow for engineering certification and constructability.
Additional detailing included:
Integrated decking systems with CCA-treated sleepers and structural supports
Sliding access points and openable zones for flexible use
Utility planning including underground drainage and electrical conduit pathways
Coordination-ready documentation for builder, engineer, and approval processes
This project highlights Structhaven’s capability in delivering container-based infrastructure design, industrial drafting services, and remote compound layouts across Australia.
Whether for mining, agricultural, or industrial applications, Structhaven provides fast, direct, and practical drafting solutions that bridge concept through to construction-ready documentation.
Coastal Granny Flat As-Built Documentation
Bunbury, Western Australia
Structhaven completed a detailed set of as-built architectural drawings for a coastal granny flat, documenting the conversion of an existing garage into a self-contained residential space. The scope included a full site plan, internal floor plan, elevations, building sections, and indicative structural elements, all prepared based on site measurements, sketches, and photographic reference.
The drawings were developed to support council requirements for retrospective approval, clearly capturing the current built condition including the front extension, internal layout, ceiling slopes, and visible construction systems. This project demonstrates Structhaven’s capability in delivering as-built documentation, granny flat drafting, and retrospective building plans, providing practical and submission-ready drawing packages across Bunbury and the South West of Western Australia.
Swimming Pool, Retaining Walls & Patio Extension
Gerlorup, Western Australia
Structhaven was engaged to prepare architectural drafting and site development documentation for a residential property in Gelorup, Western Australia.
The project involved coordinating multiple site elements including a new in-ground swimming pool, limestone retaining walls, patio extension, driveway layout and full site level integration.
Working from the feature survey and existing dwelling layout, Structhaven developed a coordinated drawing set suitable for council review and engineering certification, ensuring all new structures were positioned correctly within the building envelope, boundary setbacks and septic exclusion zones.
The design integrates an 8.6m × 4.4m in-ground heated pool, surrounding timber decking, and a gable roof patio extension, while maintaining safe clearances to the existing septic system and site levels.
Additional documentation was prepared for limestone retaining walls up to 1.05m high, pool safety fencing compliant with AS1926, and driveway grading.
The completed drawing package provides a fully coordinated residential site development plan, allowing the project to progress efficiently through engineering review and construction planning.
Mezzanine Floor & External Deck
Hideaway Bay, QLD
Structhaven was engaged to prepare drafting and documentation for a new internal mezzanine floor and external deck structure within an existing engineered shed located at Hideaway Bay, Queensland.
The objective of the project was to maximise the functionality of the existing shed by introducing a mezzanine level configured as a large bedroom, while also extending the usable outdoor space with a new external deck and roof structure connected to the building.
Working from the existing shed engineering documentation, Structhaven developed a coordinated drawing set to integrate the new structural elements without altering the primary portal frame system.
The design incorporated hot-dip galvanised steel I-beam framing for both the mezzanine and deck structures, allowing for durable coastal performance and simplified fabrication and assembly during construction.
Tourist Park Development Application
Cunderdin, Western Australia
Structhaven completed a comprehensive set of Development Application (DA) drawings for the installation of two new transportable cabins (dongas), along with the existing structures on the site. The scope included the site development for the proposed cabins, ensuring that all elements aligned with local council regulations.
The drawings were designed to ensure efficient site flow, clear setbacks, and appropriate stormwater management. This project demonstrates Structhaven's expertise in delivering site plans, floor plans, and elevations that comply with the local Shire’s requirements for transportable cabin developments.
The drawings included:
Site Development Plan: Detailing property boundaries, proposed cabins, setbacks, parking, and stormwater drainage.
Floor Plans for Cabins: Showing the layout, room dimensions, and internal details for both proposed cabins.
Elevations for Cabins: Providing the external view, building height, and materials for the proposed cabins.
Steep Driveway Drainage Plan–Shire Submission
Structhaven was engaged to prepare a detailed stormwater drainage plan for a steep rural driveway in Roelands, Western Australia, within the Shire of Harvey.
The site presented a significant natural ground fall, requiring careful grading of a 150mm uPVC stormwater line to manage surface runoff while maintaining practical excavation depths. The drainage design incorporated multiple collection points spaced along the 100-metre driveway alignment, with local soakwells positioned to control discharge and prevent erosion.
Due to the natural 1:4 ground slope across the site, the stormwater pipe grade was designed to follow the terrain while ensuring buildability and practical installation. The system included:
Long section drainage profile
Stormwater pipe invert levels and grades
Soakwell locations and spacing
Surface flow direction
Shire-compliant drainage notes page
Connection strategy for lawful discharge
The project required balancing steep terrain conditions with compliant stormwater management for Shire submission, ensuring runoff is contained within the property boundary and directed appropriately.
Structhaven specialises in rural drainage plans, steep site stormwater design, and Shire submission documentation across Western Australia.
Roelands, Western Australia
Shop Fit-Out - Korean Restaurant
Bunbury, Western Australia
Structhaven completed a detailed set of commercial shop fit-out and architectural drawings for a Korean hospitality restaurant in Bunbury. The scope included front-of-house dining and service areas, a fully coordinated commercial kitchen layout, storage and back-of-house rooms, and supporting architectural floor plans suitable for construction and internal planning.
The drawings were prepared to support restaurant fit-out requirements, focusing on efficient workflow, clear customer circulation, and practical separation between dining and kitchen areas. This project demonstrates Structhaven’s capability in delivering restaurant fit-out drawings, commercial drafting services, and architectural plans for hospitality businesses across Bunbury and the South West of Western Australia.

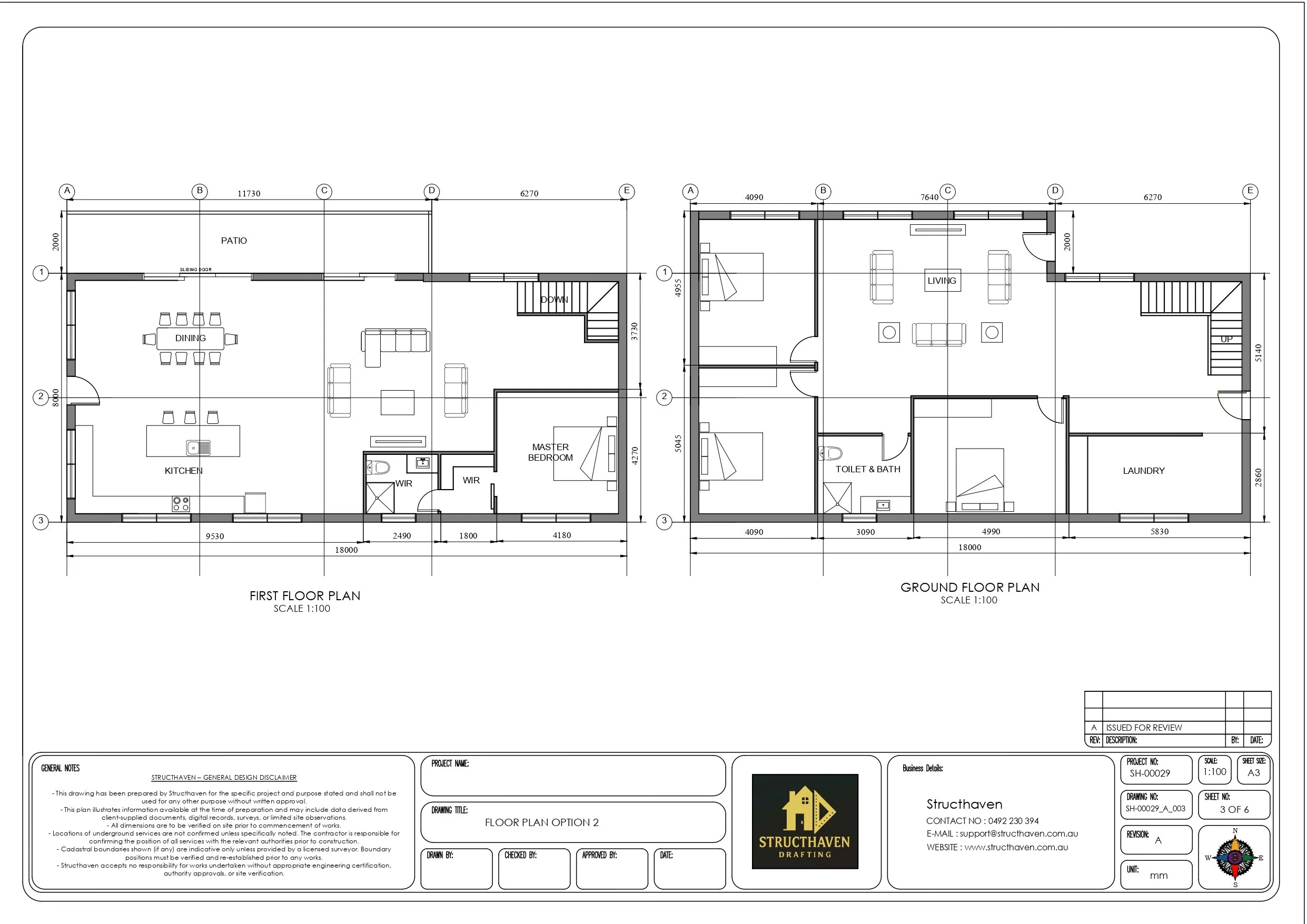

Double-Storey Dwelling with Single-Unit Residence
This project provides complete design and drafting services for a double-story residential property on a new block of land. We offer detailed designs, floor plans, elevations, roof bracing, and concrete slab layouts for the main dwelling and a 1-bedroom unit at the back. Our plans ensure compliance with local council and Australian standards, delivering a structurally sound and functional design for both residential living and potential rental income.
Mission Beach, Queensland

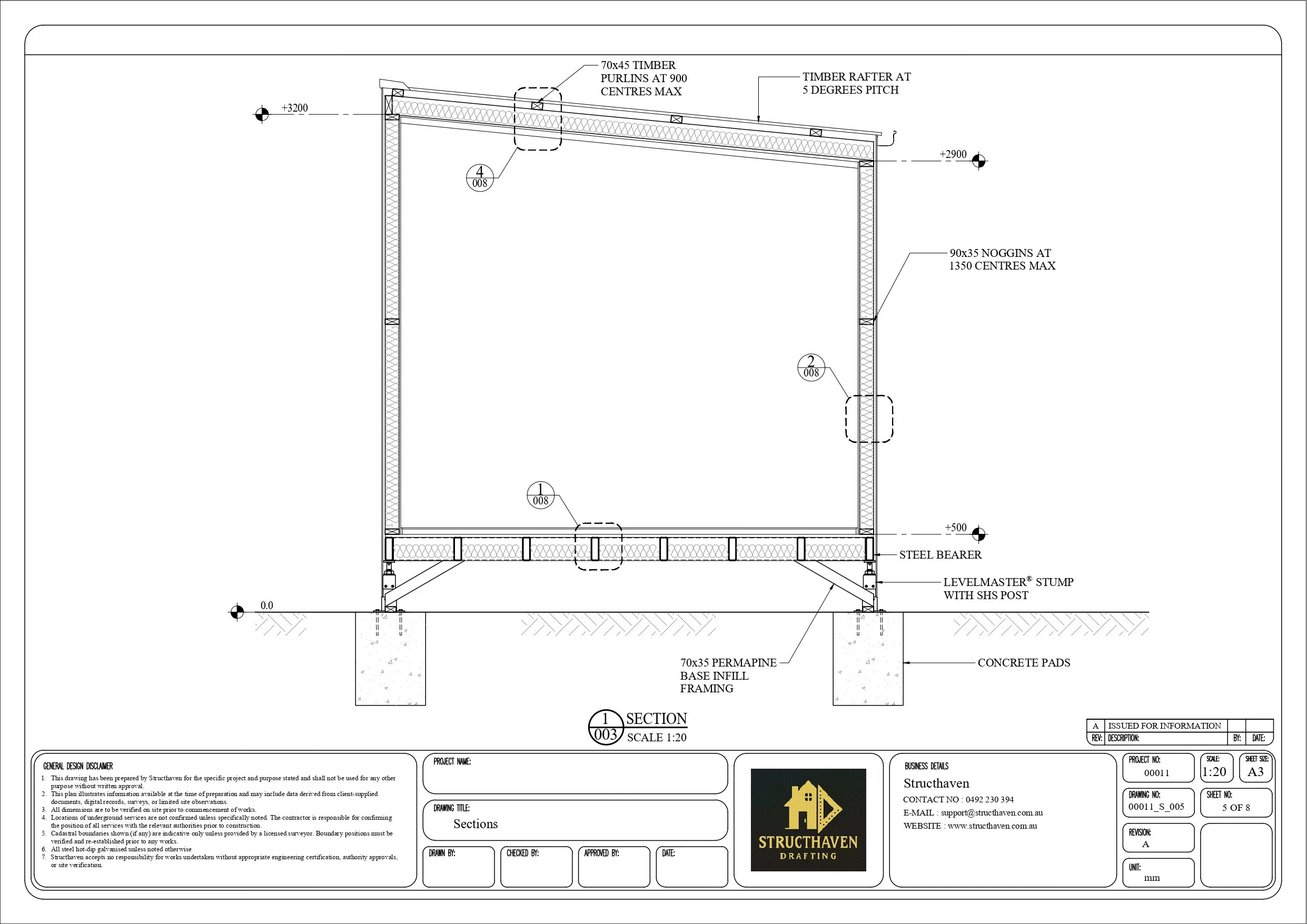

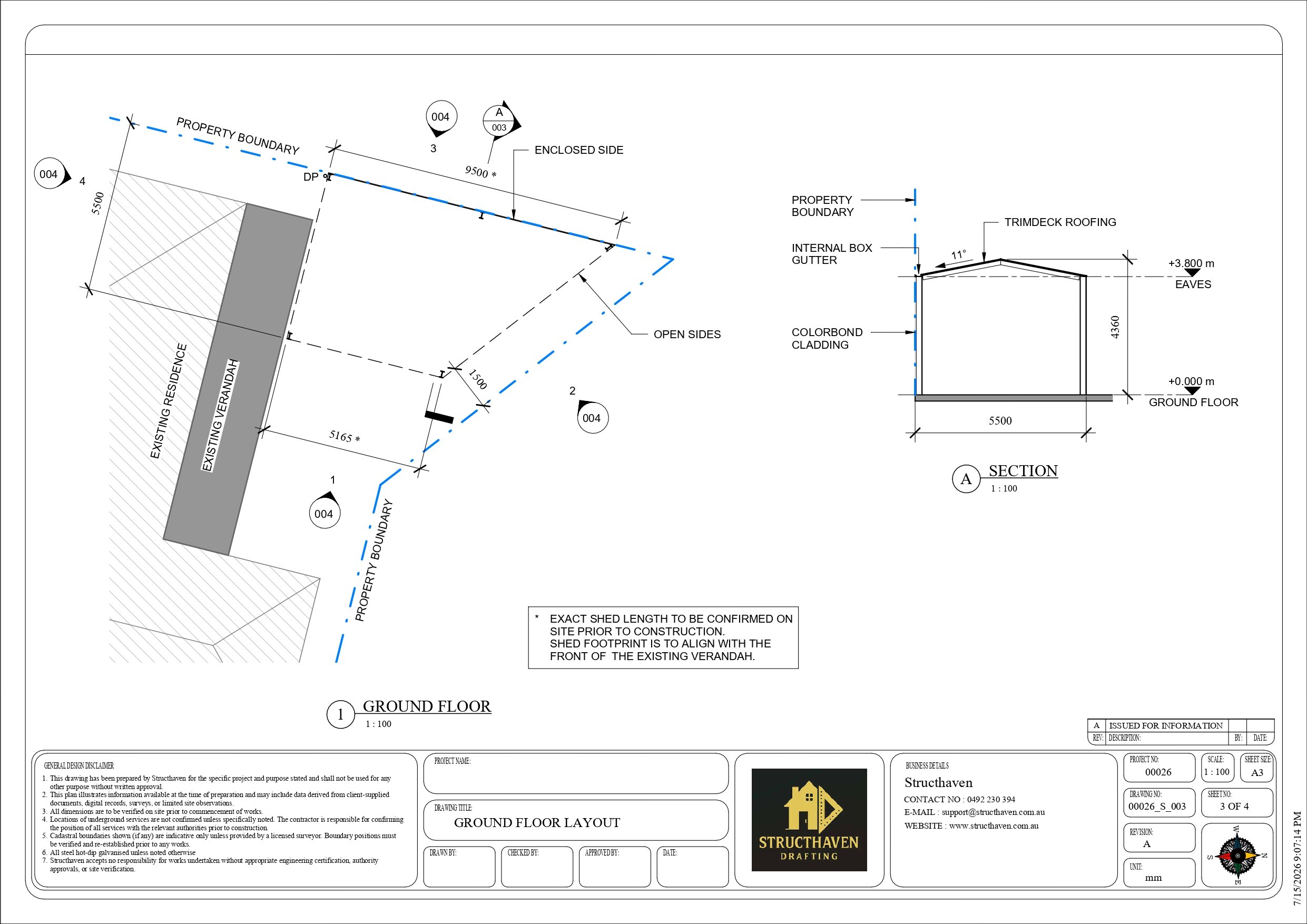

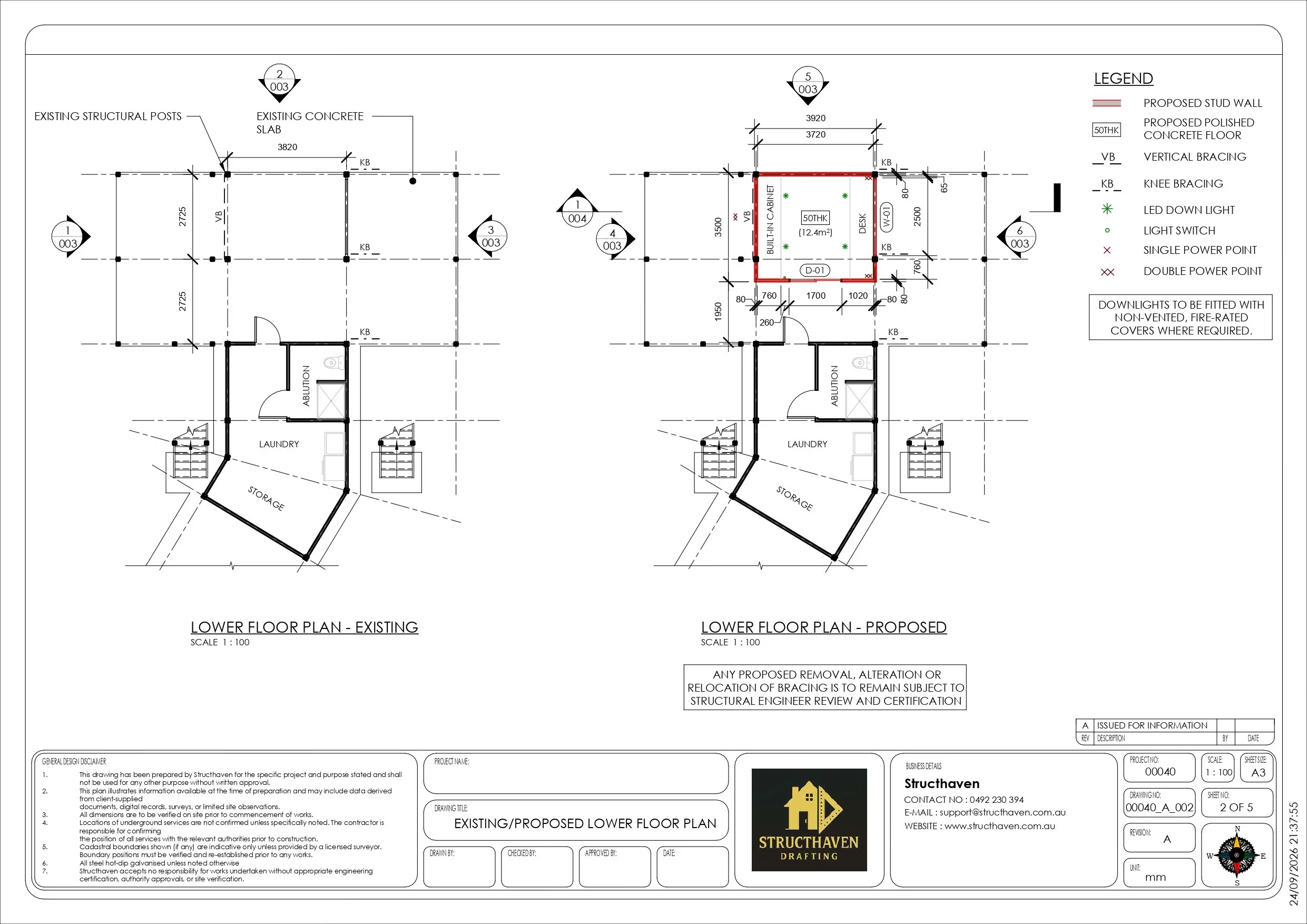

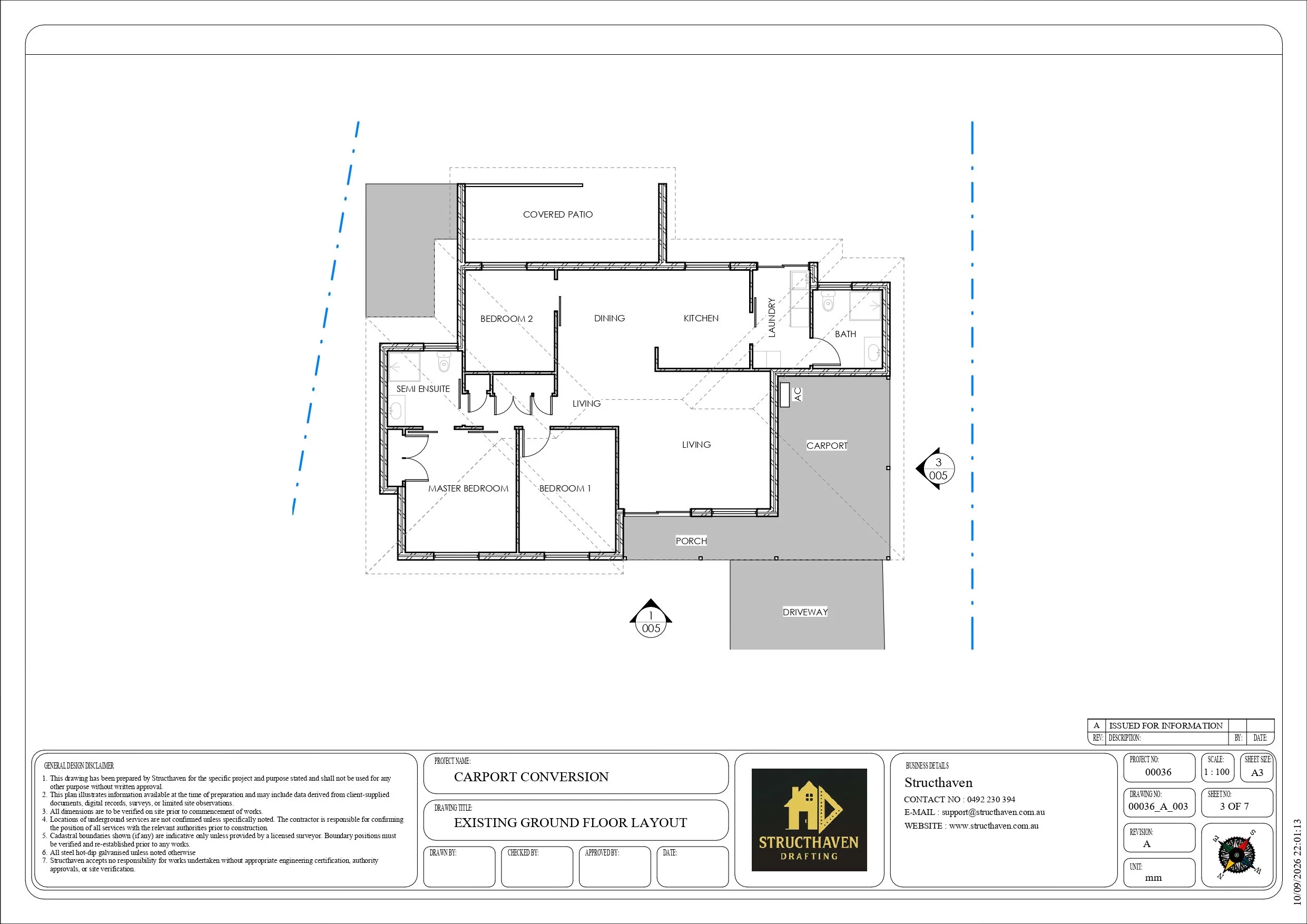

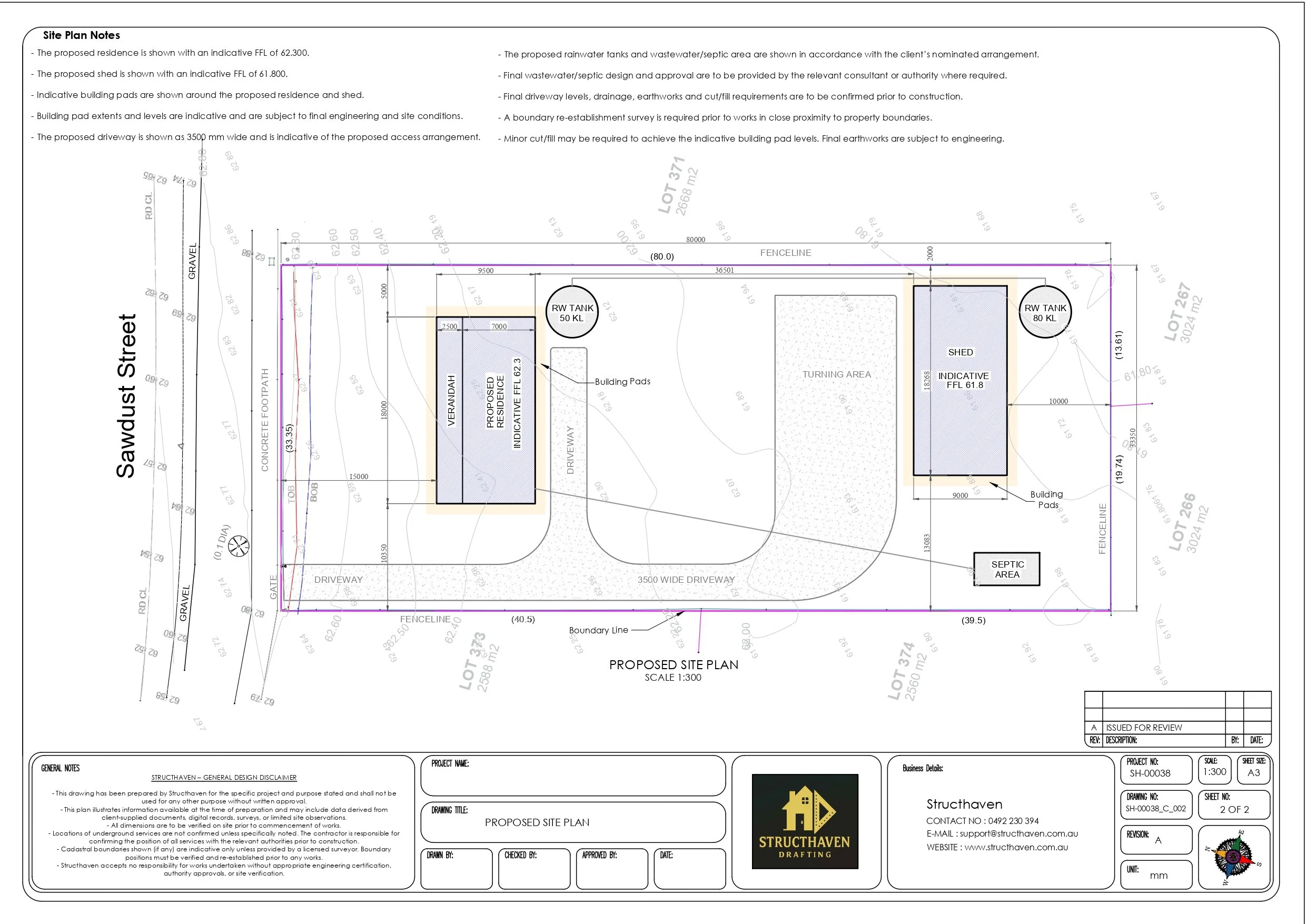

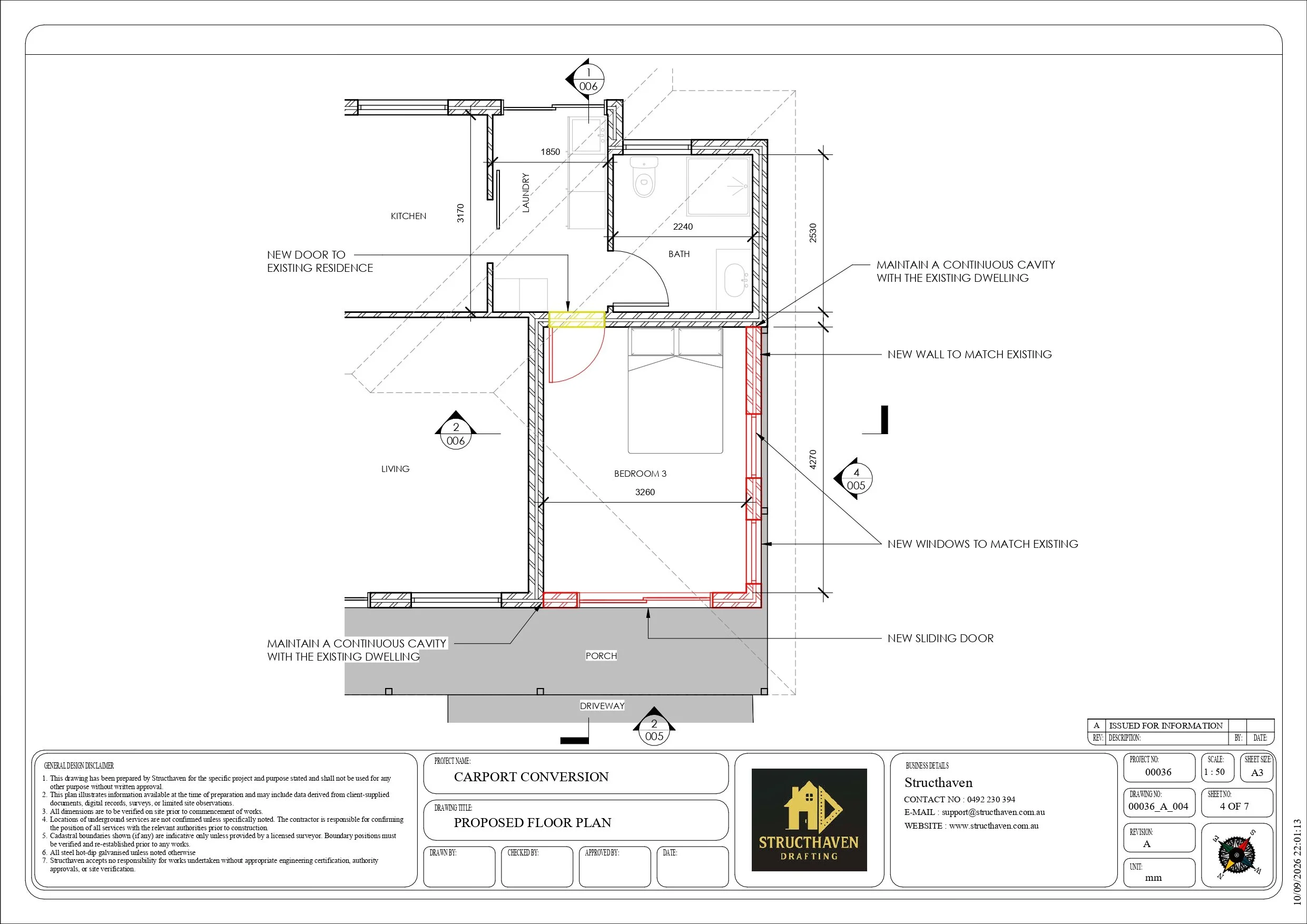

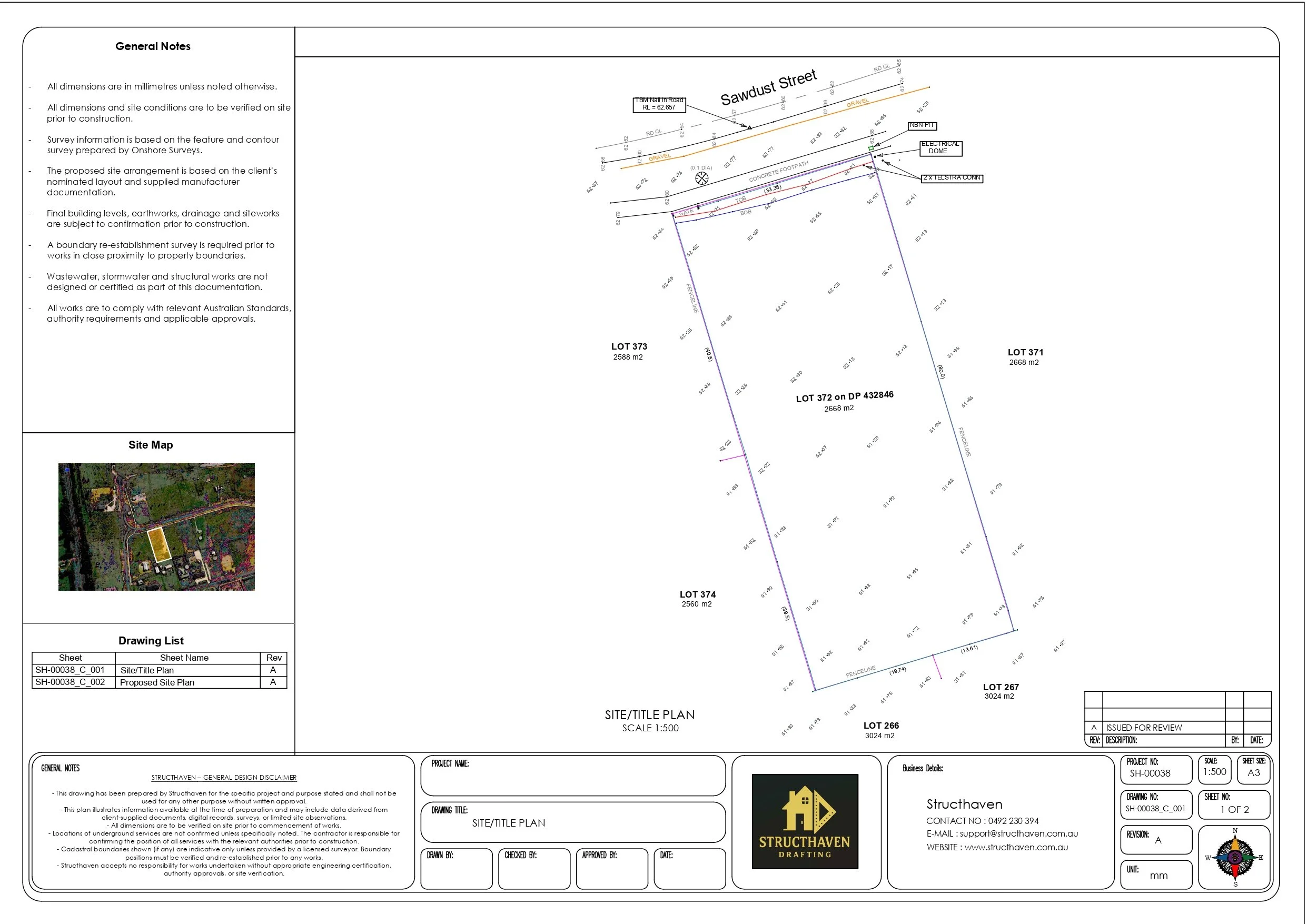

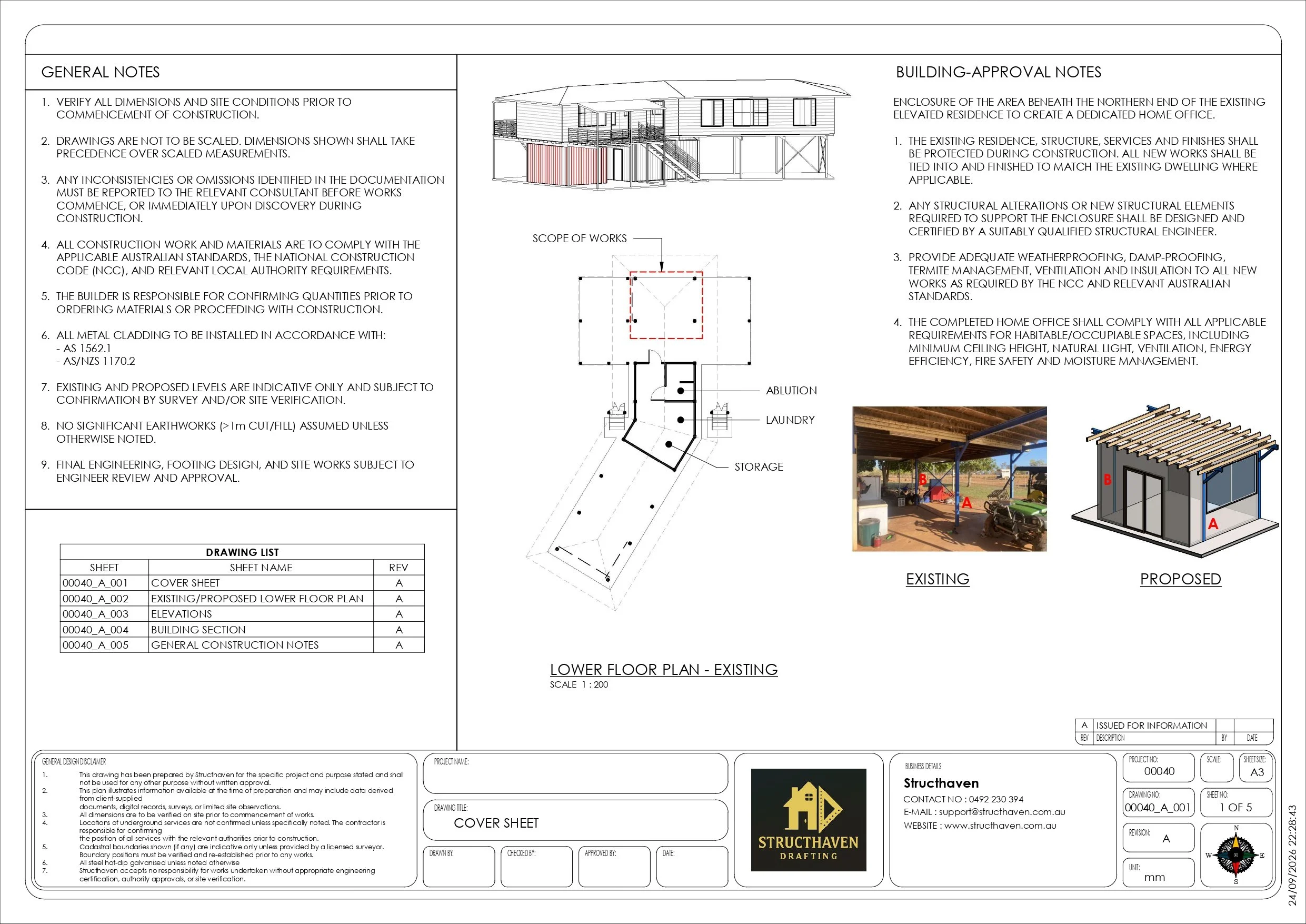

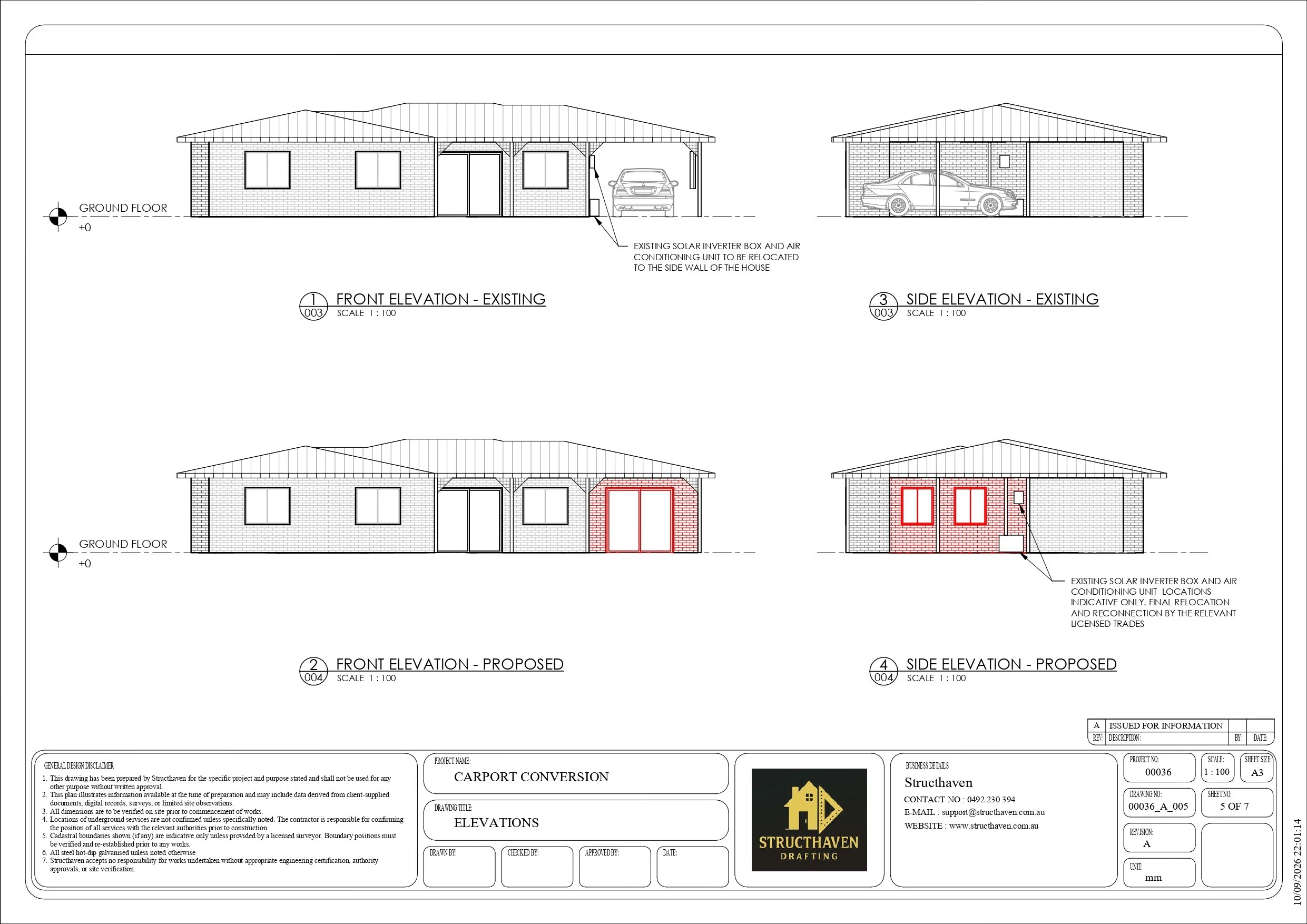

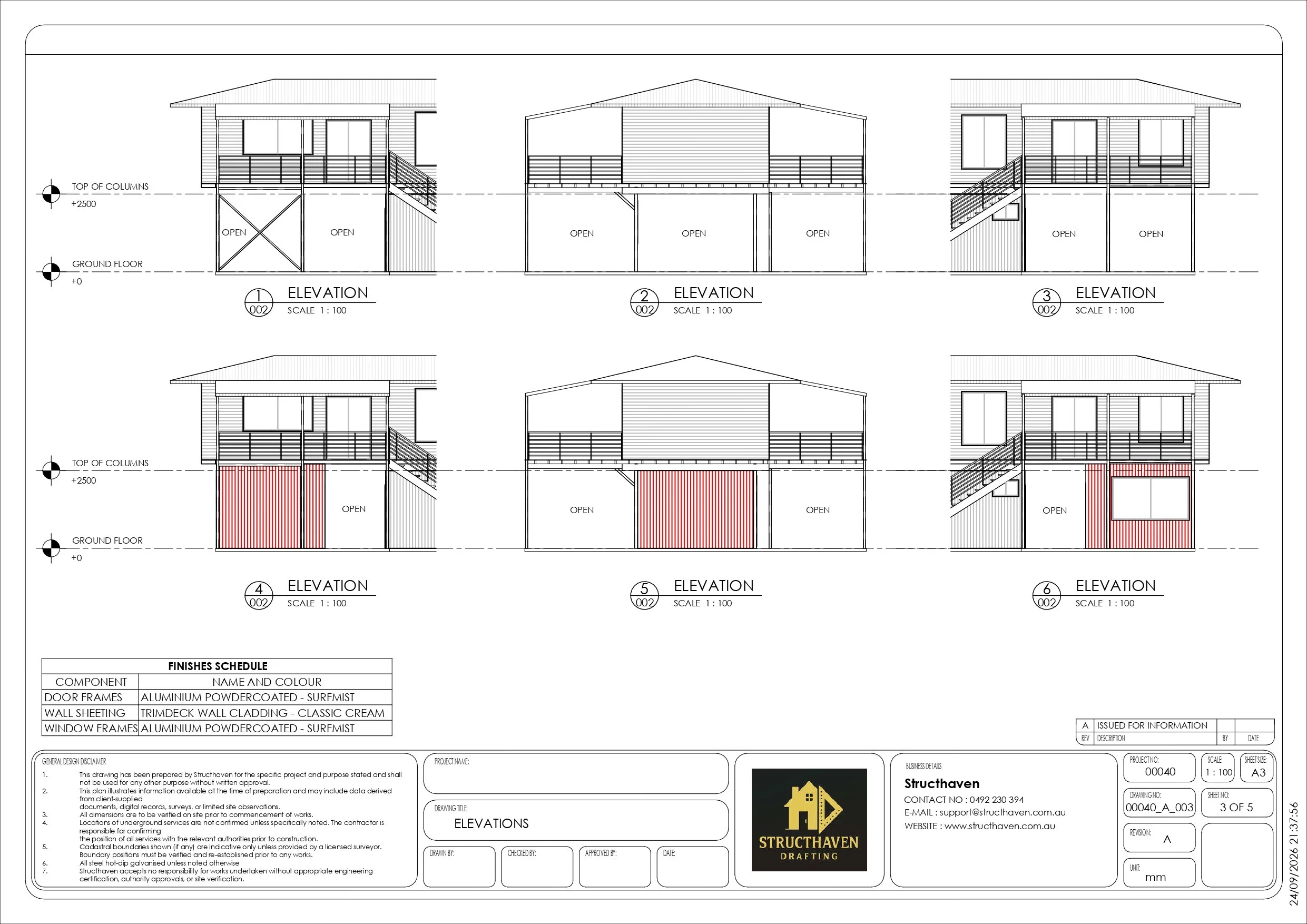

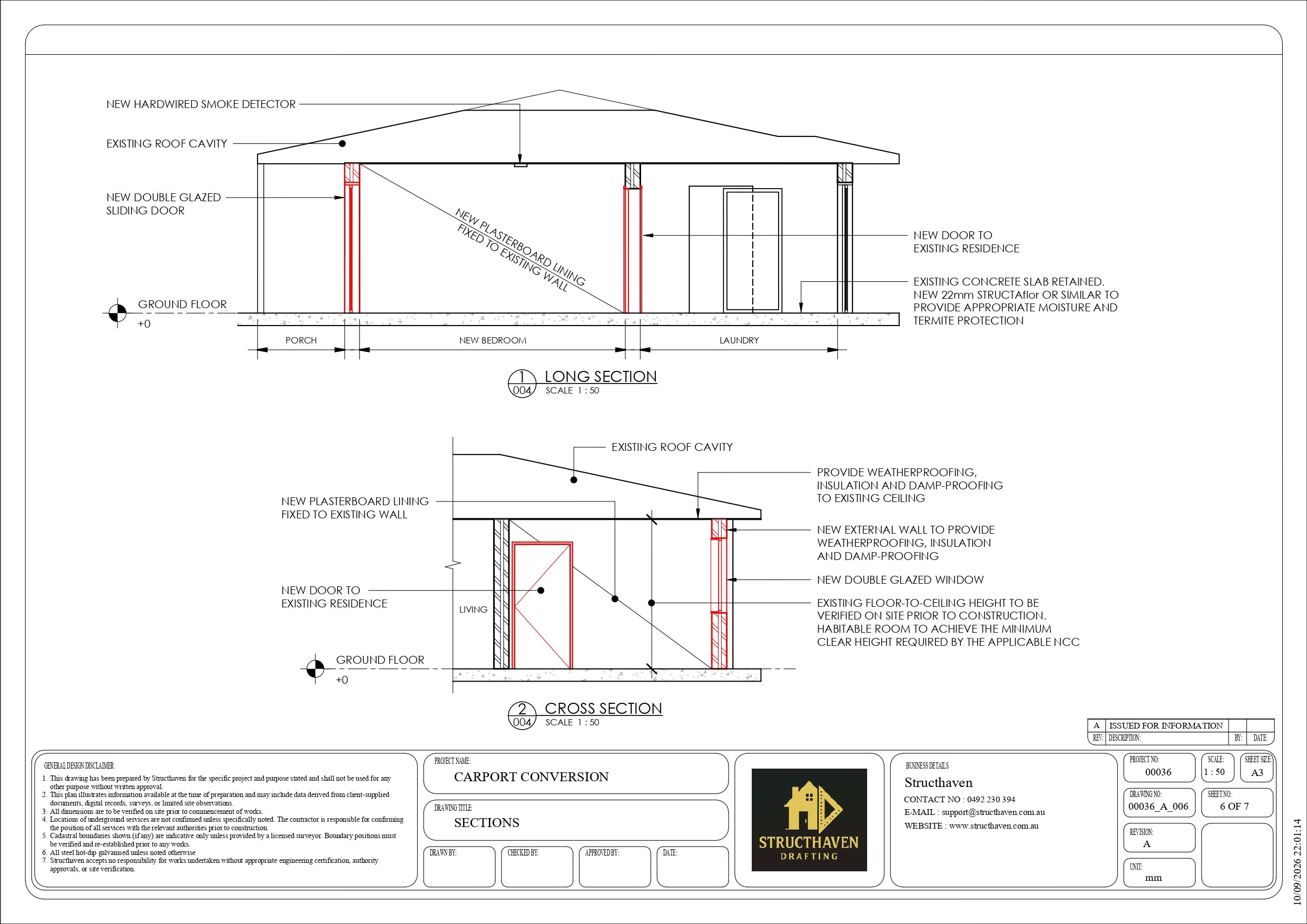

Residential and Commercial Drafting Services
Structhaven provides reliable drafting solutions for projects of all sizes — from new homes to large-scale commercial builds. We focus on accuracy, compliance, and clear communication throughout the process.
Our drafting services cover:
Residential – new builds, renovations, and extensions designed to suit your lifestyle and comply with local codes.
Commercial – detailed plans for offices, retail, and industrial spaces, ensuring functionality and professional presentation.
Concept to Completion – from initial layouts and floor plans to full construction drawings.
Compliance – all designs prepared to meet building regulations and council requirements.
Collaboration – working alongside builders, engineers, and clients for smooth project delivery.
With Structhaven, you get plans that are practical, compliant, and tailored to bring your vision to life.
